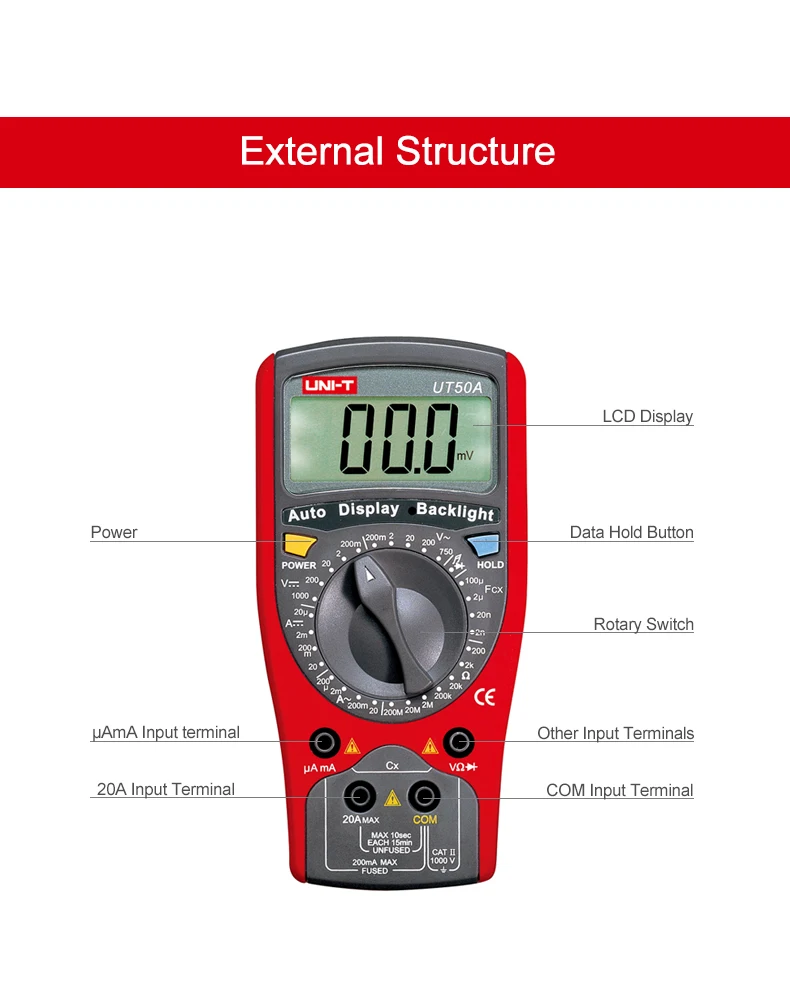

רב מודד דיגיטלי UT50A

Specifications

Range

UT50A

DC voltage (V)

200mV/2V/20V/200V

±(0.5%+1)

1000V

±(0.8%+2)

AC voltage (V)

200mV

±(1.2%＋3)

2V/20V/200V

±(0.8%+3)

750V

±(1.2%＋3)

DC current (A)

20μA/2mA

±(0.8%＋1)

200mA

±(1.5%＋1)

20A

±(2%＋5)

AC current (A)

200μA/2mA

±(1%＋3)

200mA

±(1.8%＋3)

20A

±(3%＋5)

Resistance (Ω)

200Ω

±(0.8%＋3)

2kΩ/20kΩ/200kΩ/2MΩ

±(0.8%＋1)

20MΩ

±(1%＋2)

200MΩ

±(5%＋10)

Capacitance (F)

2nF/20nF/2μF

±(4%＋3)

100μF

±(5%＋4)

Diode test

1mV resolution, 250V voltage protection

Open circuit voltage is about 2.8V

Fengming continuity test

1Ω resolution, 250V voltage protection

About <70Ω, the buzzer sounds continuously

Display count

1999

Back light

√

AutoPower Off

10Min

√

Data Hold

√

General Characteristics

Power

9V NEDA1604 or 6F22 or 006P(No include)

Product net weight

275g

Product size

165mm x 80mm x 38.3mm
